Selection Procedures

• Each model of Scale Guard works on a defined range of flow rate
• In order to select the model flow rate at the tapping of condenser should be known or this can be calculated on the basis of 3-4 USGPM per ton
• In the table below minimum flow rate is mentioned against each model while maximum flow rate of a model becomes the minimum flow rate of the next higher model

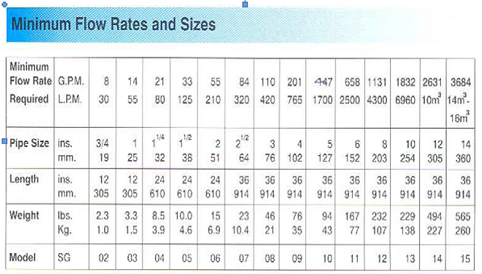

Model Selection & Technical Data of each model:
